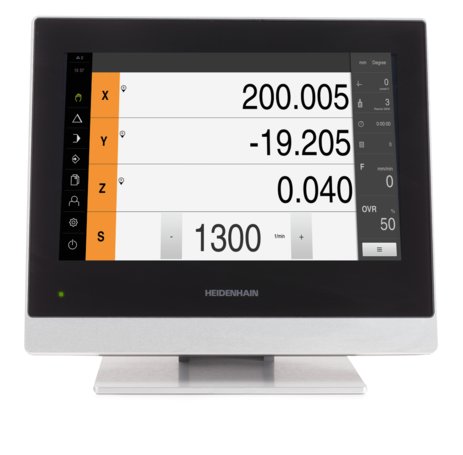

POSITIP 8016

  • Specifications
  • Documentation
Specifications

POSITIP 8016

POSITIP 8016 ACTIVE

Axes

Up to 6 axes (4 axes in the standard version; 2 additional axes available as an option)

Encoder inputs

  1 VPP,   11 µAPP, EnDat 2.2

Display step1)

Linear axis: 1 mm to 0.000 01 mm

Display

12-inch screen for touch operation; resolution: 1280 x 800 pixels for position values, dialog messages, data entry, and graphical functions

Functions

  • Creation and execution of programs
  • User administration and file management
  • 100 presets, 100 tools
  • Reference mark evaluation for distance-coded and single reference marks
  • Distance-to-go mode with nominal position input in absolute or incremental values
  • Graphical positioning aid
  • Scaling factor, mirror image, magnification

For milling and drilling

  • Calculation of positions for hole patterns (circular, linear)
  • Tool radius compensation
  • Cutting data calculator
  • Probing functions for preset finding (edge, centerline, and circle)

Control of up to 3 NC axes and a spindle; switching functions

For turning

  • Measurement of tool dimensions
  • Sum display of axes in the top slide
  • Taper calculator

Control of up to 3 NC axes and a spindle; constant surface speed; switching functions

Error compensation

Linear (LEC) and segmented linear (SLEC)

Data interface

2 x Ethernet 100 Mbit/1 Gbit (RJ45), 4 x USB 2.0 (Type A)

Accessories

Single-Pos, Duo-Pos, Multi-Pos stands, Multi-Pos holder, mounting frame, power cable, adapter connector

Power connection

AC 100 V to 240 V (±10 %), 50 Hz to 60 Hz (±5 %)
POSITIP 8016 ACTIVE: 79 W; POSITIP 8016: 38 W

Operating temperature

0 °C to +45 °C (storage temperature: –20 °C to +70 °C)

Protection EN 60529

IP65; back panel: IP40

Mounting

Single-Pos stand, Duo-Pos stand, Multi-Pos stand, Multi-Pos holder,
fastening systems compatible with VESA MIS-D 100

Mass

 3.50 kg

1) Depends on the signal period or line count of the connected encoder
